USA Prefabricated Residential Houses – Ideal For European Markets Modular Home
Lakeshore House
2Living
4 Bedrooms
3 Bathrooms
2 Garage
210m²
Lakeshore House is a remarkable two-story villa crafted by DEEPBLUE SMARTHOUSE. This model, DPBL-24-11, encompasses four bedrooms, two living rooms, a kitchen, three bathrooms, a study, and two garages, providing a well-rounded living experience. With a total area of 420 m²—247 m² on the ground floor and 173 m² on the first floor—this villa offers generous space for family gatherings and relaxation.

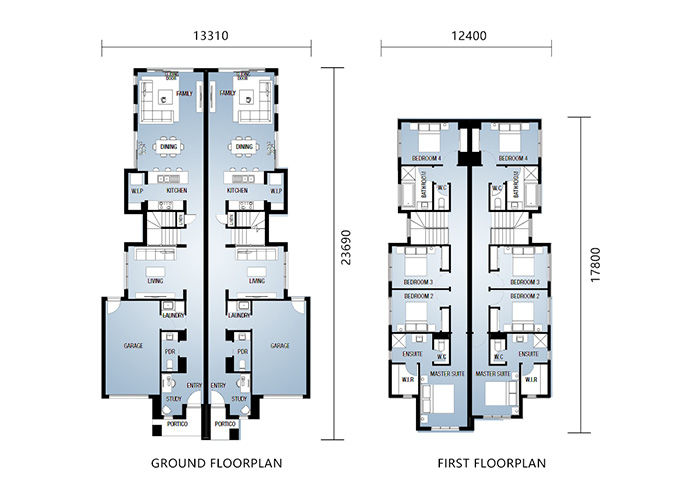

Floor plan:
The innovative design of two adjacent villas not only enhances aesthetics but also maximizes functionality, creating a cohesive living environment. DEEPBLUE SMARTHOUSE offers a complete range of materials, including light steel frames and elegant finishes, ensuring your home meets the highest standards of quality and style.
| Name: | Lakeshore House |
| Size: | 15240×16202mm |
| Ground floor area: | 193.22㎡ |
| First Floor Area: | 175.8㎡ |
| Total Area: | 369.02㎡ |
| Model: | DPBL-24-10 |
Premium Materials & Certifications:
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance:all the materials used can be fire resistance.
5)Snow resistance:max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation:the average is one worker one day install one SQM.
12)Installation guide:dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Company Information
Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation and other services as a whole. We always committed to providing every family with a comfortable, safe and affordable home, and also can provide one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGO. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture
The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere we provide you with first-for our customers, that's our commitment to you.
Packaging & Shipping
Well packed export quality package ,shipped by 40hq.
