Australian Light Steel Framing House Project Prefab Kitset Homes Nz Prices
Saint Lucia Villa 2104
3 bedrooms
3 bathrooms
2 living room
536 m²
Saint Lucia, a country in the Caribbean area, is a holiday resort with abundant sunshine and beautiful scenery.
This building is a luxurious sea-view villa in Saint Lucia, with a total construction area of 422 sqm.
The building has three floors. The large glass folding door on the ground floor leads to the outdoor activity area, which is surrounded by frameless glass guardrails. There is a large terrace, a swimming pool, and an outdoor fireplace. It is a perfect environment for outdoor parties and banquets.
The open kitchen and dining room can be used for daily cooking, and can also meet the needs of many people's banquets. The stairs are behind the washroom, with side-hung frameless glass guardrails. Inside, there is a guest with an ensuite.
The master bedroom is on the first floor, with an ensuite and a large walk-in closet of 12 sqm. The master bedroom leads two different balconies through the large glass doors. The office with an ensuite is separated from the master bedroom by the staircase, forming a private space.
The third floor is a 105 sqm large roof terrace, some of which are covered with a roof, and can be used as an activity area whether it rains or not.
The whole building is well arranged, with good daylighting and sufficient public activity areas. It is an excellent model of villa design.
Quick Detail:
| Name | Luxury villa | Application | Villa for living |
| Color | Optional(For you to choose ) | Feature | 1. Flexible space design makes you comfortable.
2. Quick set-up and early check-in.
3. Green environmental protection materials, fire, and wind anti-earthquake. 4.Construction speed is fast and simple |
| Material | light steel and other parts material | Certificate | CE,ISO,SAA,ETC,ISO |
Product parameters:
Model:2104 Saint Lucia Villa
Size:22554×13845mm
Grond floor area: 258 ㎡
First floor area: 210 ㎡
Second floor area: 68 ㎡
Total area: 536㎡
Description:
Main structure: Light Steel
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board
Insulation material: Insulation material
Structure: Steel Frame
Ceiling material: MGO board/gypsum board
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy/PVC
Roofing: EPS sandwich panel/steel roofing/asphalt shingle
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years of structure
Product Description

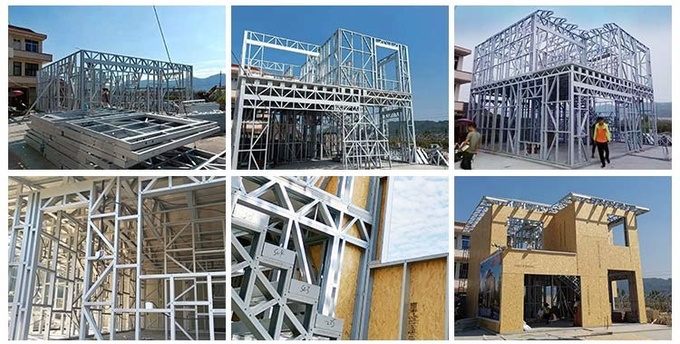

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following: 1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy
7. ceiling: 8mm PVC ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows 11.interior door: painted wood door 12.bathroom: shower, washbasin, toilet included
Company Introduction:
Since establishing the company in 2009, we have been proud of providing cost-effective custom and modular houses, apartments, and commercial buildings to people all over the world. So far, we have built more than 5,000 houses and won many design and construction awards. Today, we build, sell, finance, and lease our buildings from China to all around the world.
We specialize in the design and manufacture light steel frame house, include a light steel frame villa, modular house, apartment, resort, tiny house, etc.
We have a new large-scale processing center and modern production workshop to produce high-quality products in strict accordance with technical specifications and quality control, ensuring the accuracy of our products.
