EU/AU/NZ/USA Fire-proof Light Steel Framing Prefabricated Luxury Duplex Villa
West Ryde duplex
12 bedrooms
12 bathrooms
2 kichen
4 living room
668m²

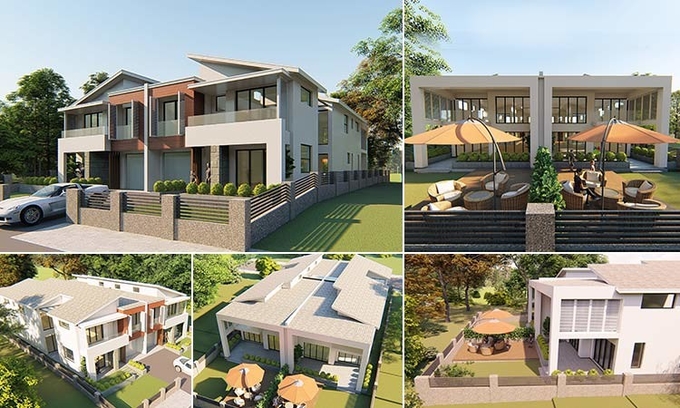

This is a double-storey townhouse on a plot of approximately 416 square metres, with a large yard at the front and also a small garden at the back. Both houses have a similar layout: on the ground floor there is a garage with three sliding doors into the living room. On the ground floor there is an opening kitchen and dining room, one bedroom and two bathrooms; on the first floor there are five rooms, four bathrooms and three balconies, making it very comfortable to live in.
The two-storey townhouse has a large yard at the front and a small rear garden. The plot area is 2274 square meters, with a length of 16.5 meters and an average width of 7.62 meters.
The townhouse’s front yard is a safe, clean and healthy environment, A balcony with glass wall dded to let more air flow in the house, there will be 2 IKEA steam chestnut long sofas and 2 steel wooden chairs outdoor;the small north balcony also adds a half-buried sofa. The rest furniture are added according to practicality: an Ikea sliding board can meet children’s reading room; two 1xx100mm living fences belong to different rooms for stereo listening.
Quick Detail:
| Name | prefabricated villa | Application | Villa for living |
| Color | white | Feature | 1.quickly to assemble on-site; 2.good earthquake proof; 3.green and energy save; |
| Material | light steel and other parts material | Certificate | CE,ISO,SAA,ETC,ICC |
Description:
Main structure: Light Gauge Steel
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board
Insulation material: Insulation material
Ceiling material: gypsum board
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy window
Roofing: EPS sandwich panel/steel roofing/asphalt shingle
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure
Applications:
House, Office, Villa, etc.
Floor plan:
Ground Floor:338㎡

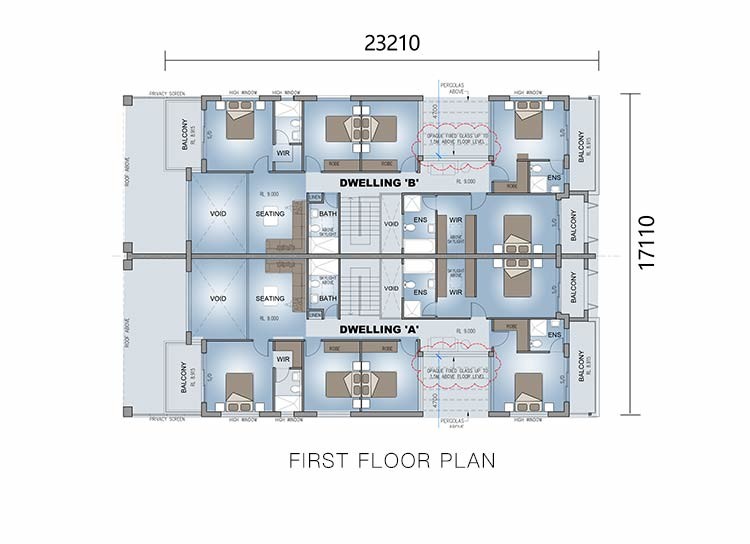

First Floor:330㎡
Total Area:668㎡
House Width:22.02m
House Length:17.11m
Garage:18.84㎡
This is a double-storey townhouse on a plot of approximately 416 square metres, with a large yard at the front and also a small garden at the back. Both houses have a similar layout: on the ground floor there is a garage with three sliding doors into the living room. On the ground floor there is an opening kitchen and dining room, one bedroom and two bathrooms; on the first floor there are five rooms, four bathrooms and three balconies, making it very comfortable to live in.
Specifications
ISO standard light gauge steel for the main structure.fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.
Technology Details:
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resists winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
Your first choice, Deepblue Prefabricated house in China.
